Hi Guys!

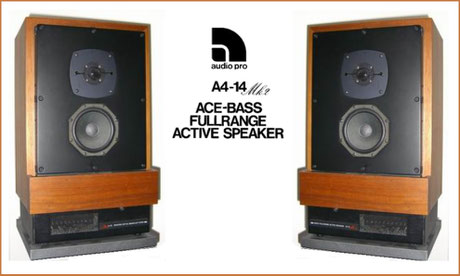

I had wanted to do it a long time ago but.....anyaway I'm finally on vacation and I have a litte bit time to put in place some modifications, substitutions and calibrations on my old active loudspeakers Audio Pro A4-14 Mk2 that I have bought more or less........thirty years ago!

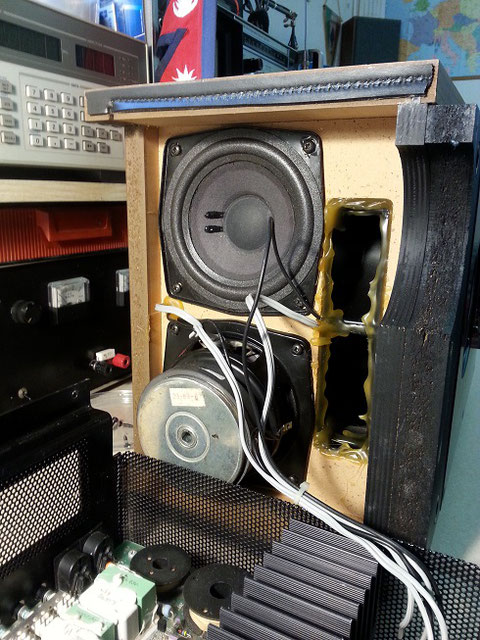

The first one activity to put in place is the replacement of the original suspension rings of the woofers, Sipe "AS.130 42148", with new foam rings.

In fact after a lot of years of service inevitably the time has destroyed the original suspension that probably it was silicone rubber.

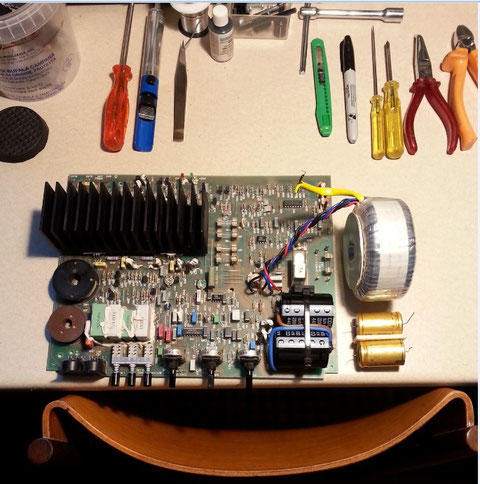

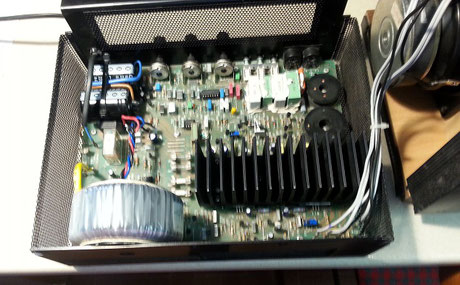

I have replaced the two old electrolitics capacitors on the DC power line with two electrolitics on high capacity to improve the current request on transient.



I have clean the potentiometers and the switches with a specific spray, aboveall I have substituted the "critical" tantalium capacitance on the signal line with new one.

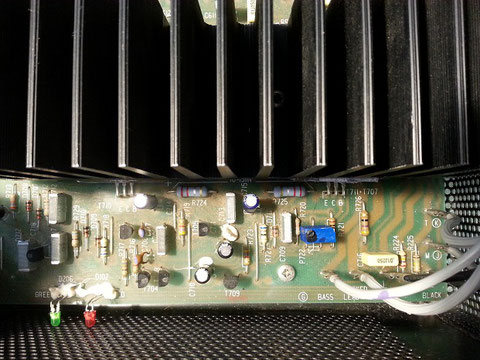

You can see the photo concerning the position of tantalum condenser.

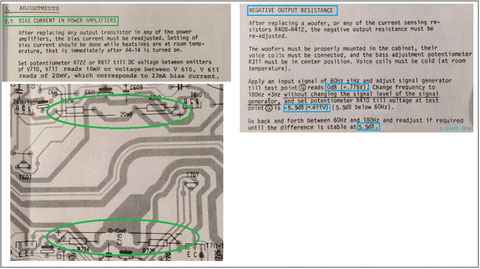

This is the indication for bias and ACE Bass adjustments, by the way here I have added the voltage value (not indicated on Service Manual) that must be set to -5.5dB

These simple notes I hope that can help someone to recalibrate well the A4-14 Mk2 active loudspeakers system after the necessary substitutions.



Only one important thing if you want to readjust newly the bias current!

In fact to avoid the possible broken of the final transistors, I strongly suggest to substitute the original trimmers (for both amplifier they are 470 Ohm, but it's better to use 1K) with most reliable mult-turn trimmer and to set it before on max value of resistence to avoid a possible initial high current that could be destructive for final transistors.

In any case, you can substitute the BDW93B and BDW94B final transistors with the "C" version that it's better because allowing 100V of VCE instead of 80V.



I want to say that with the modifications, aboveall with new capacity to respond to high request of current (the electrolitics capacity it's increases to six time respect of the original) and the "old ladies" are now even more faster with amazing bass response, braked and even deeper (;-))
